Free Activity Data Flow

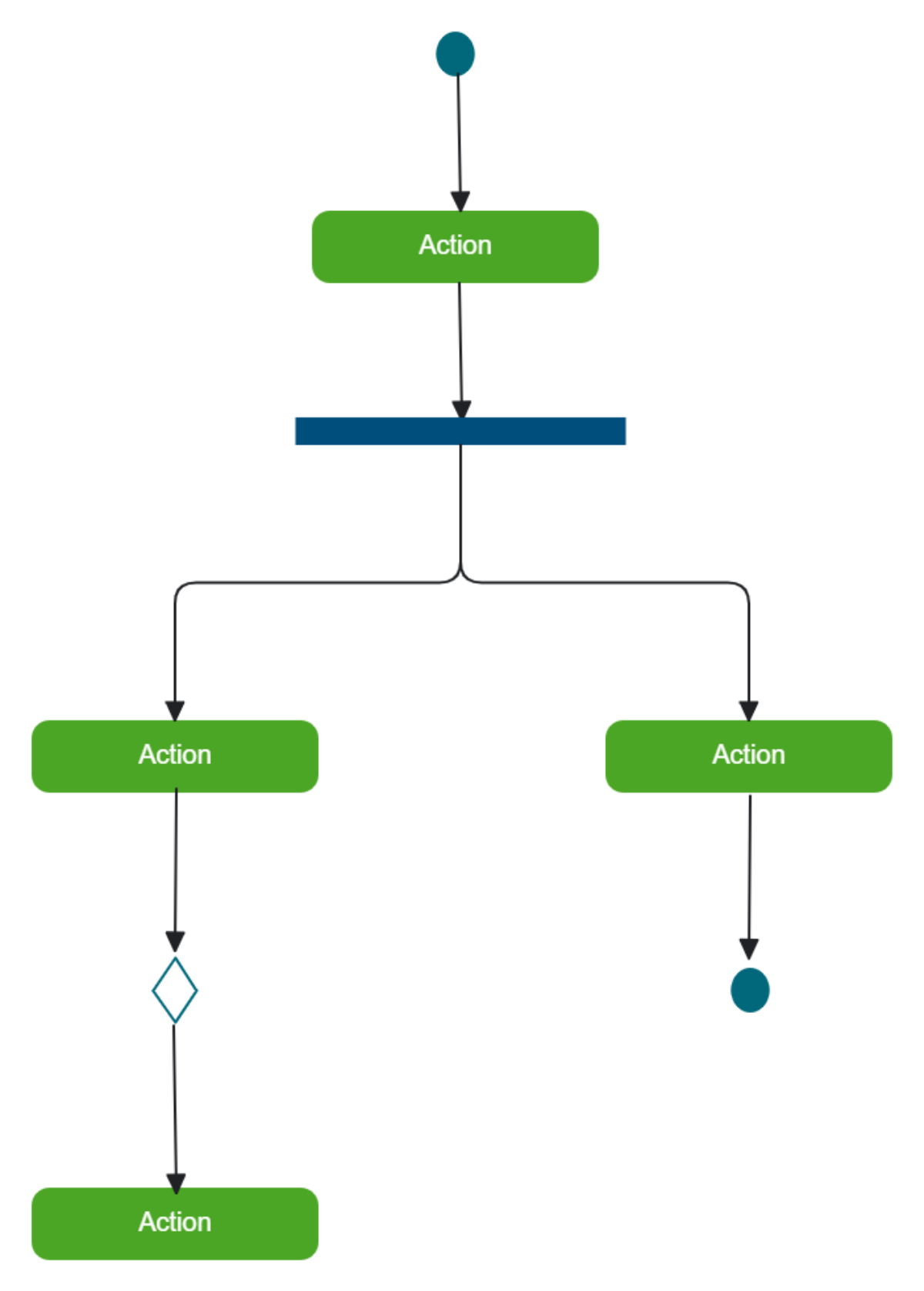

This Activity Data Flow diagram is designed to visually model the step-by-step actions and decision points within any sequential or parallel process. It is an essential analytical tool for system analysts, business process owners, and project managers focused on optimizing workflows. The workflow begins with a defined initial state, leading into the first Action step. Next, the process can split into parallel actions using a synchronization bar, allowing multiple steps to occur simultaneously. The flow continues through subsequent actions, potentially incorporating a decision point, before merging back together or concluding at the final state. The resulting diagram provides a clear, documented view of the system's operational activities, ensuring efficient process understanding and documentation.
