Free Investigation D

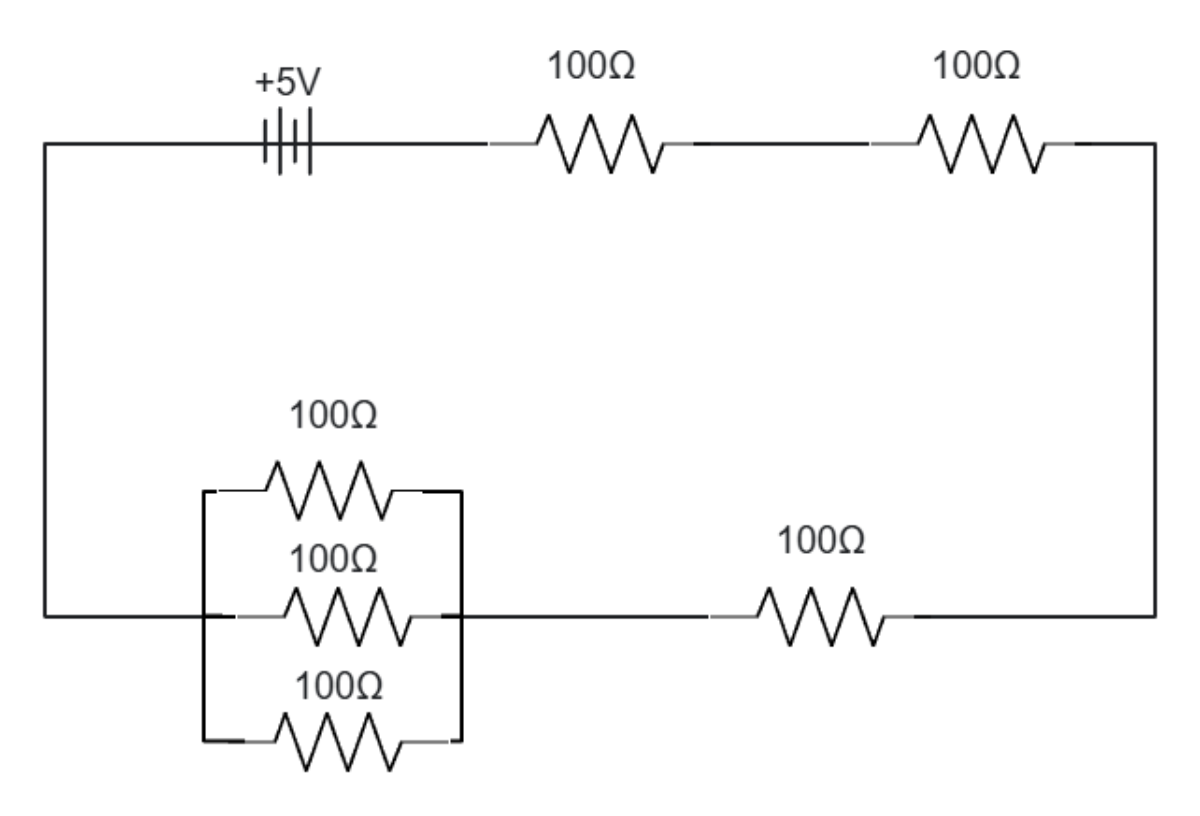

The Investigation D template is a professional engineering tool designed to facilitate the clear visualization and documentation of a complex combined resistive circuit. This resource is ideal for electrical engineers, laboratory technicians, and physics students who require a standardized schematic for analyzing current flow through mixed series and parallel configurations. Users begin the workflow by establishing the +5V DC power source at the top of the loop. They then move through a step-by-step process of mapping out the primary series resistors and the three-branch parallel network, ensuring each 100? component is accurately placed. Completing this logical process results in a high-fidelity technical roadmap that enables stakeholders to achieve precise equivalent resistance calculations and verified hardware designs.
