Free Equipment Calibration Flow Chart

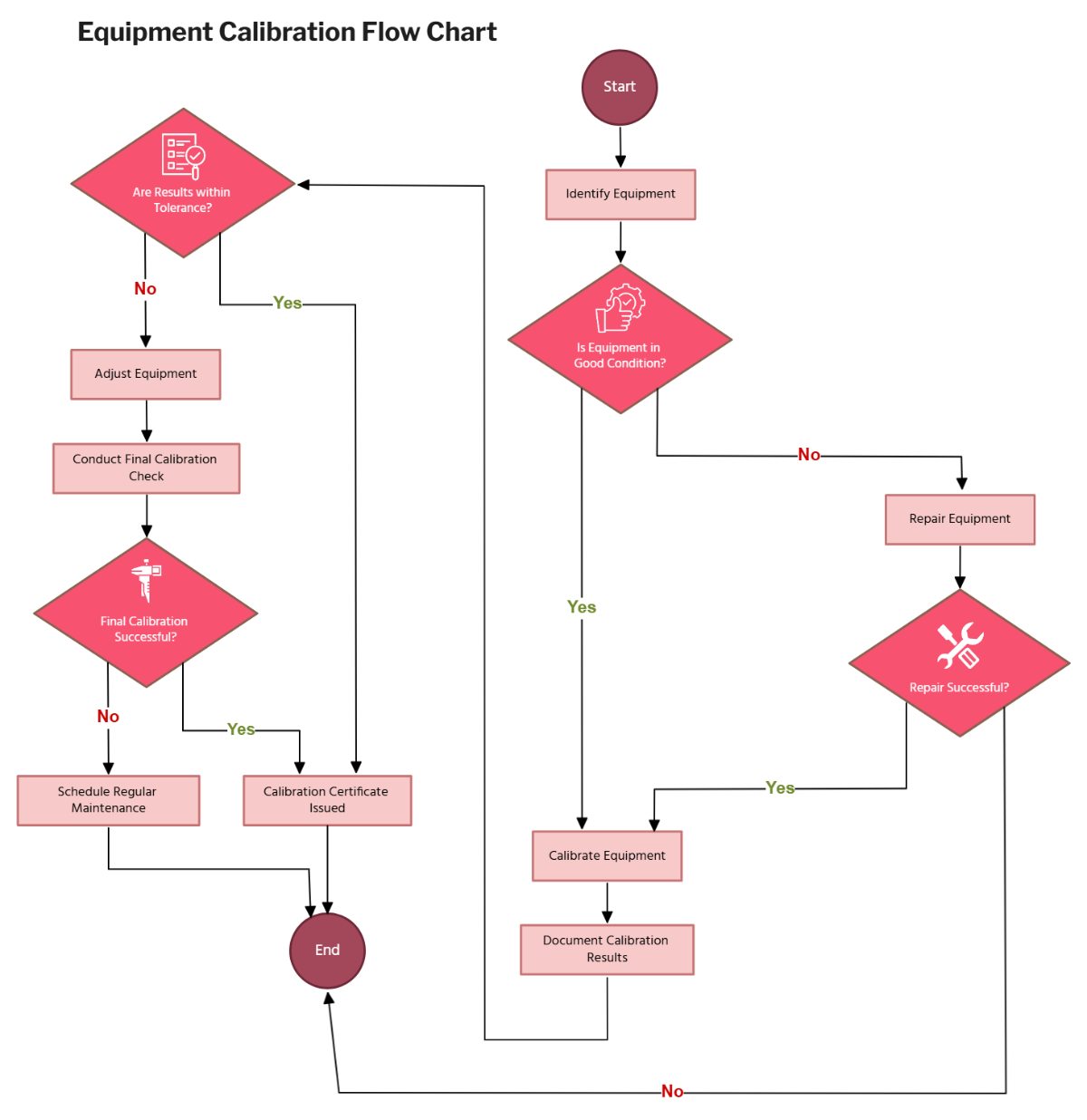

The Equipment Calibration Flow Chart offers a precise, methodical approach to ensuring measurement accuracy and equipment reliability. It begins with identifying the equipment and assessing its condition, seamlessly guiding users through repair, calibration, and documentation steps. If the equipment is not in good condition, the flow directs immediate repair and evaluates its success before proceeding. Once calibration is performed, the chart checks whether the equipment falls within tolerance, triggering adjustments and a final calibration if necessary. Successful outcomes lead to certification and scheduled maintenance, reinforcing long-term performance. This flowchart supports quality assurance by embedding decision points and feedback loops that promote accountability, reduce error, and maintain compliance across operational environments.
