Free Gas Distribution Flow Chart

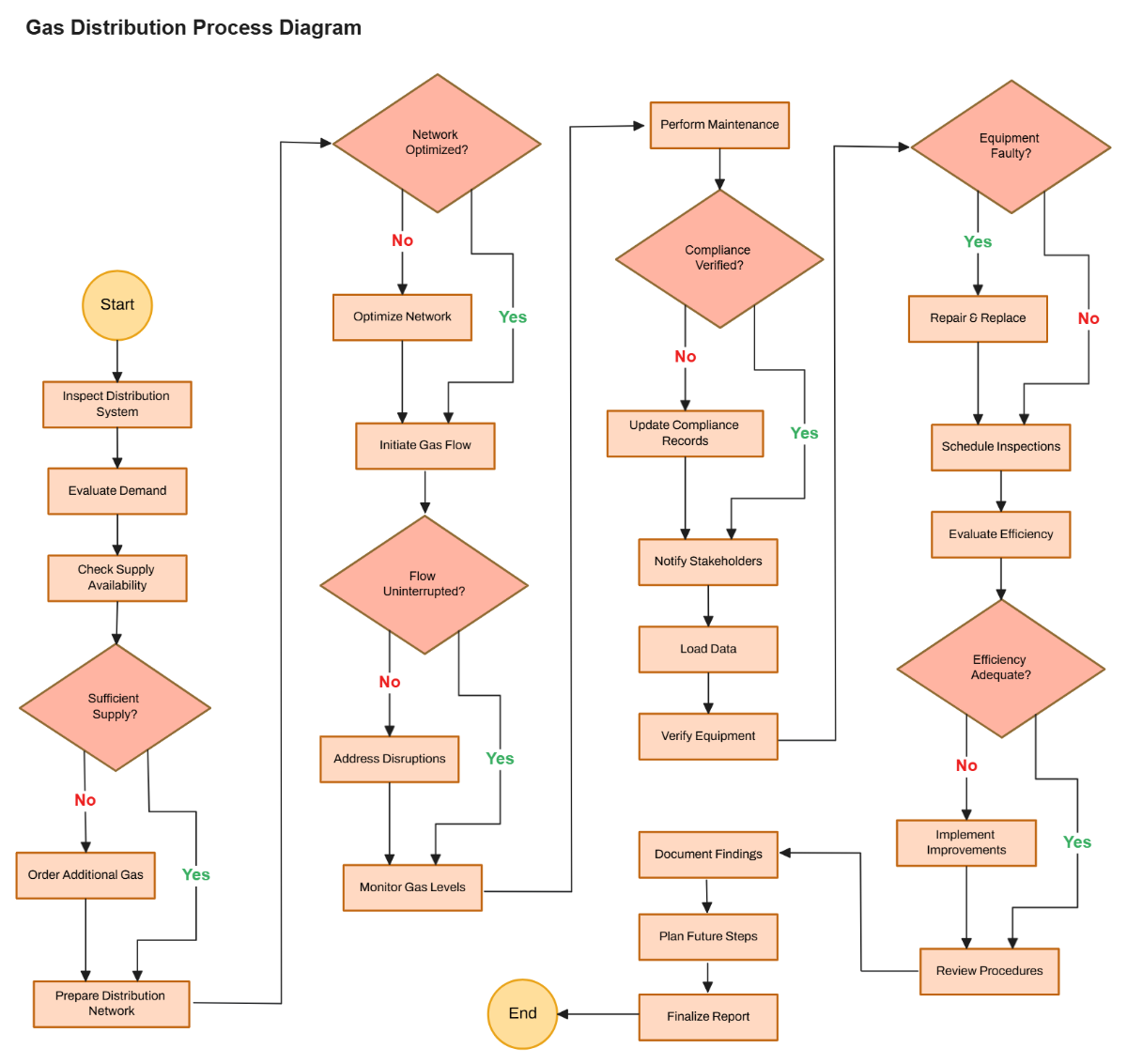

The Gas Distribution Flow Chart outlines a structured, multi-phase approach to managing the safe and efficient delivery of gas across a network. It begins with a thorough inspection of the distribution system and an evaluation of demand, followed by a supply check that determines whether additional gas needs to be ordered. Once supply is confirmed, the network is optimized and gas flow is initiated, with built-in decision points to detect and address any disruptions. The process continues with real-time monitoring, equipment verification, and scheduled maintenance to uphold system integrity. Compliance records are updated, faulty components are repaired or replaced, and inspections are scheduled to ensure regulatory alignment. Efficiency is then evaluated, and improvements are implemented through procedural reviews and system upgrades. This flowchart reinforces operational resilience by embedding continuous monitoring, decision-based interventions, and proactive maintenance into every stage of the distribution cycle.
