Free Water Treatment Flow Chart

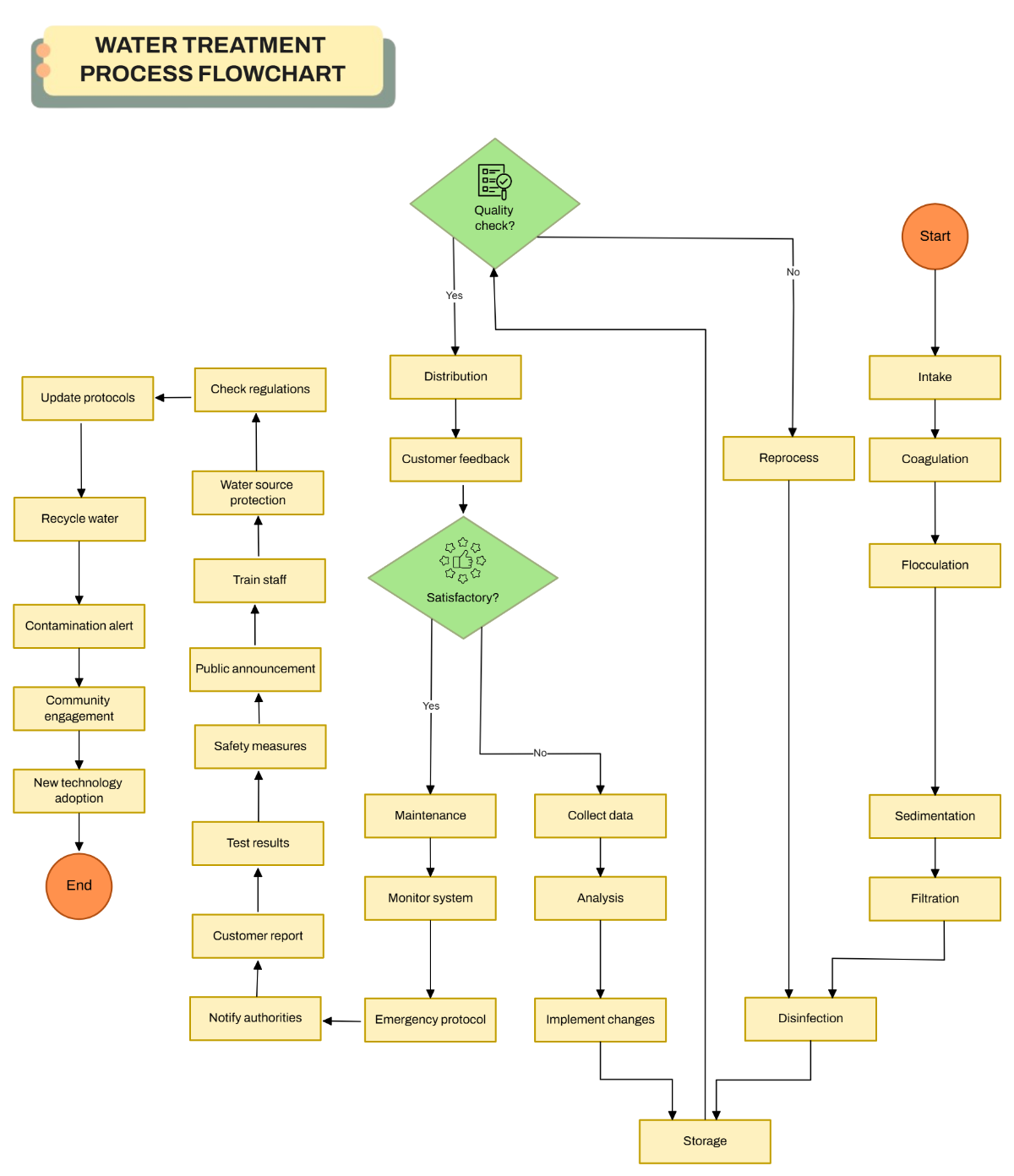

The Water Treatment Flow Chart illustrates a robust, feedback-driven system for purifying and distributing water while maintaining public safety and regulatory compliance. It begins with the intake of raw water and progresses through essential treatment stages—coagulation, flocculation, sedimentation, disinfection, and filtration. A quality check determines whether the water meets standards; if not, it loops back for reprocessing. Once approved, the water is distributed and customer feedback is collected to assess satisfaction. If feedback is negative, the flow activates a corrective cycle involving data collection, analysis, and protocol updates. This leads to emergency planning, system monitoring, and community engagement, ensuring transparency and trust. The final stages incorporate staff training, technology adoption, and environmental protection, reinforcing a culture of continuous improvement and resilience in water management.
